Total Racing Products Ultimate CAN Hub

Key Features

• Available in 1×4 and 2×4 variations
• Designed for clean CAN network expansion
• Designed to supply up to 8 amps of power across the CAN hub
• Genuine motorsport grade connectors
• Diagonally oriented connector layout for cleaner wire routing
• Sealed with epoxy and silicone for weather resistance
• Carbon fiber infused enclosure
• Stainless steel mounting inserts pressed into the enclosure
• Designed to accommodate an M6 mounting fastener
• Compatible with popular aftermarket and OEM CAN networks, including MoTeC, Haltech, Syvecs, MaxxECU, ECUMaster, FuelTech, and stock ECU applications

Product Description

The Total Racing Products Ultimate CAN Hub is a clean, durable, and motorsport focused solution for expanding your CAN network.

Designed for builds that require multiple CAN devices, displays, controllers, expansion modules, keypads, or other CAN based accessories, the Ultimate CAN Hub gives you a professional way to distribute CAN wiring without cutting, splicing, or creating a tangled mess of wiring.

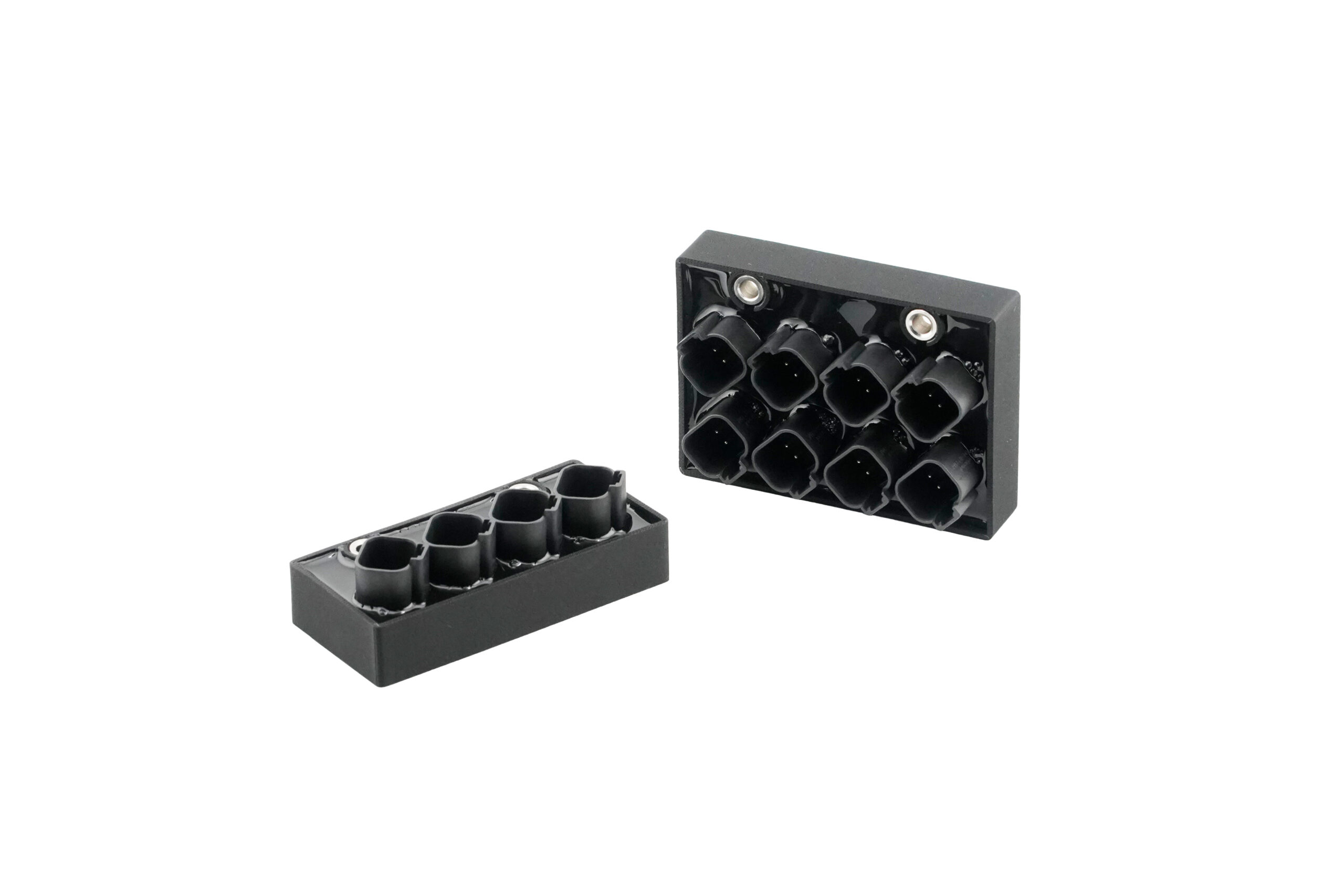

Available in both 1×4 and 2×4 variations, the Ultimate CAN Hub gives you flexibility depending on the needs of your setup. The 1×4 version is ideal for simple CAN expansion, while the 2×4 version gives you additional routing options for more involved wiring layouts.

Unlike some competing CAN hubs on the market, the TRP Ultimate CAN Hub is built with real world power demands in mind. Our boards are designed to supply up to 8 amps of power across the CAN hub and use genuine motorsport grade connectors, making them a strong choice for demanding automotive environments where reliability matters.

We also paid close attention to wire routing. Instead of placing the connectors in a basic straight layout, the connectors on the TRP Ultimate CAN Hub are oriented diagonally. This helps make routing cleaner, reduces awkward wire angles, and allows for a more professional finished installation.

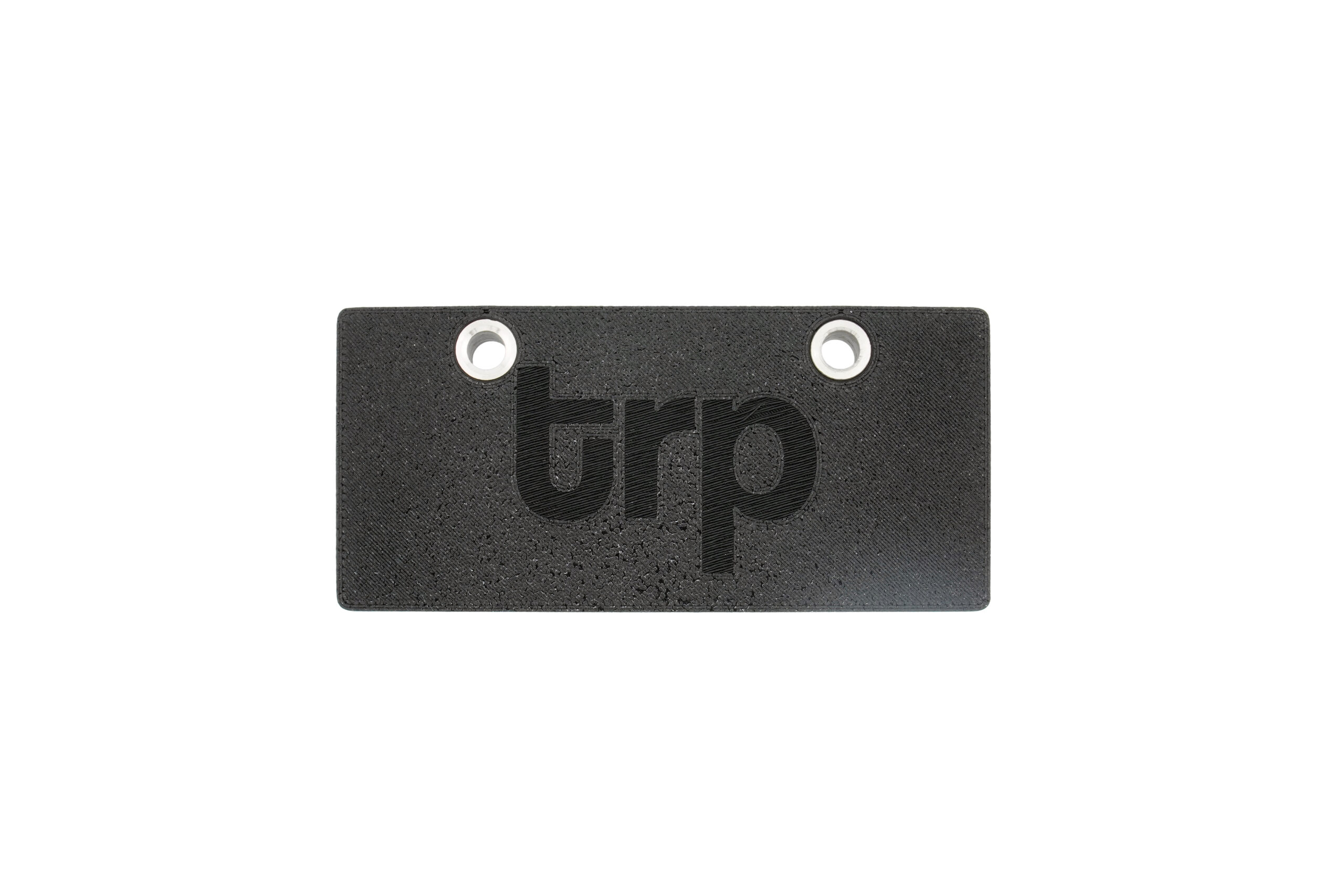

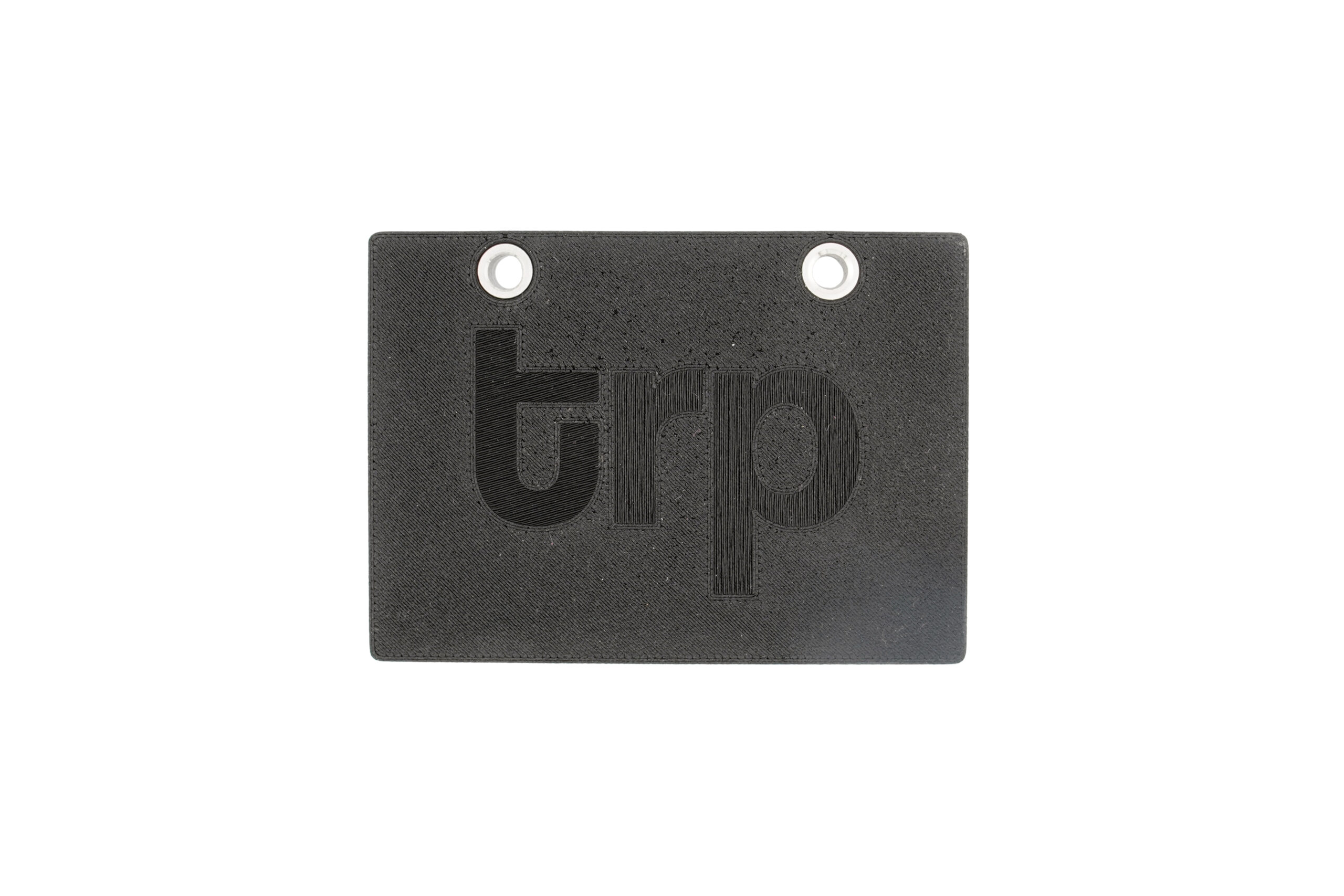

Each hub is housed in a carbon fiber infused enclosure and sealed with epoxy and silicone for weather resistance. To make mounting more durable, stainless steel inserts are pressed directly into the enclosure. These inserts allow the hub to be mounted and torqued down using an M6 fastener without worrying about damaging the enclosure.

Whether you are adding a dash, wideband controller, CAN keypad, sensor module, ECU expansion device, or other CAN based accessory, the Total Racing Products Ultimate CAN Hub gives you a clean and reliable foundation for your CAN network.

Pinout

Configuration Options

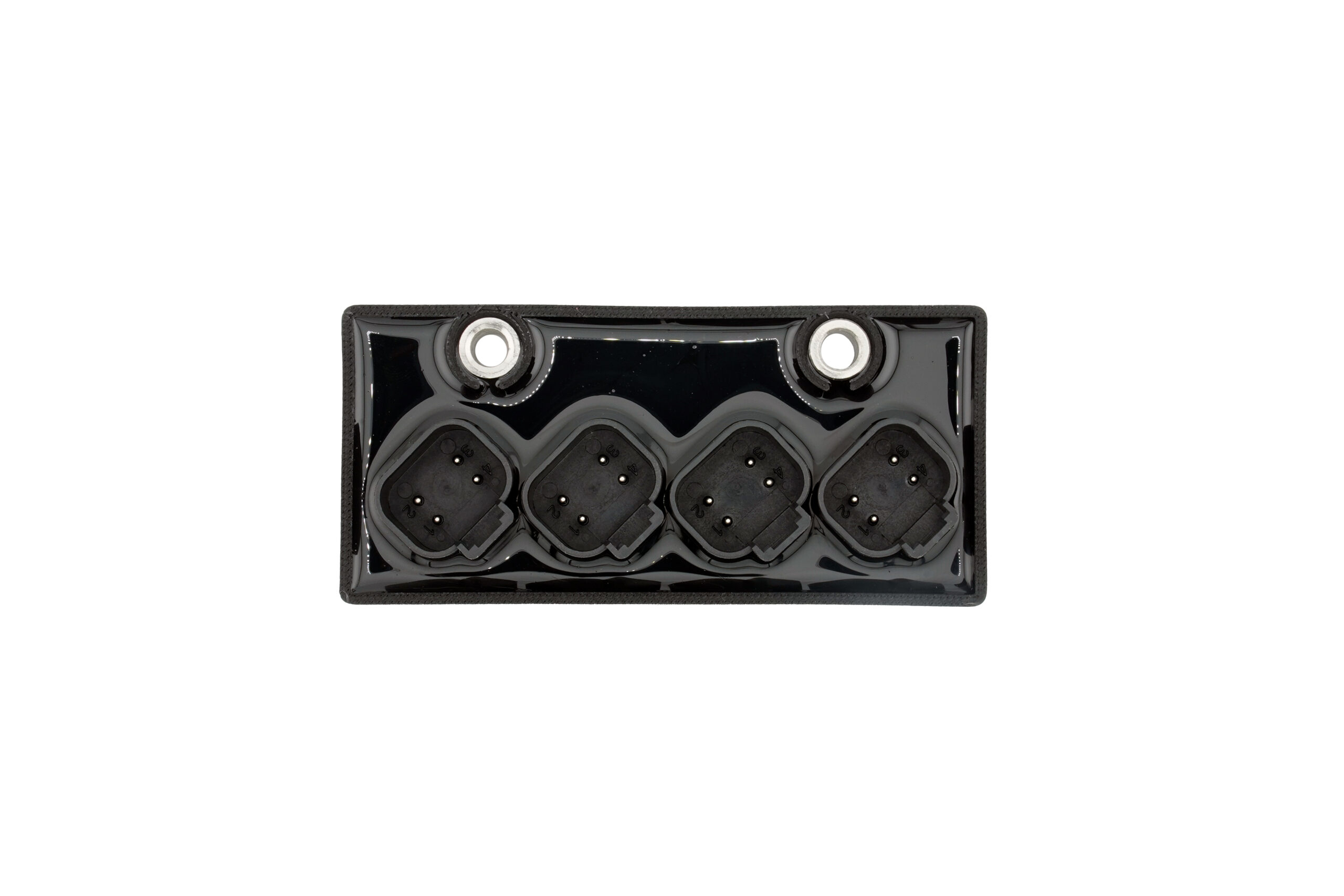

1×4 Variation
Best for simple CAN expansion where one CAN input needs to be distributed to multiple CAN devices.

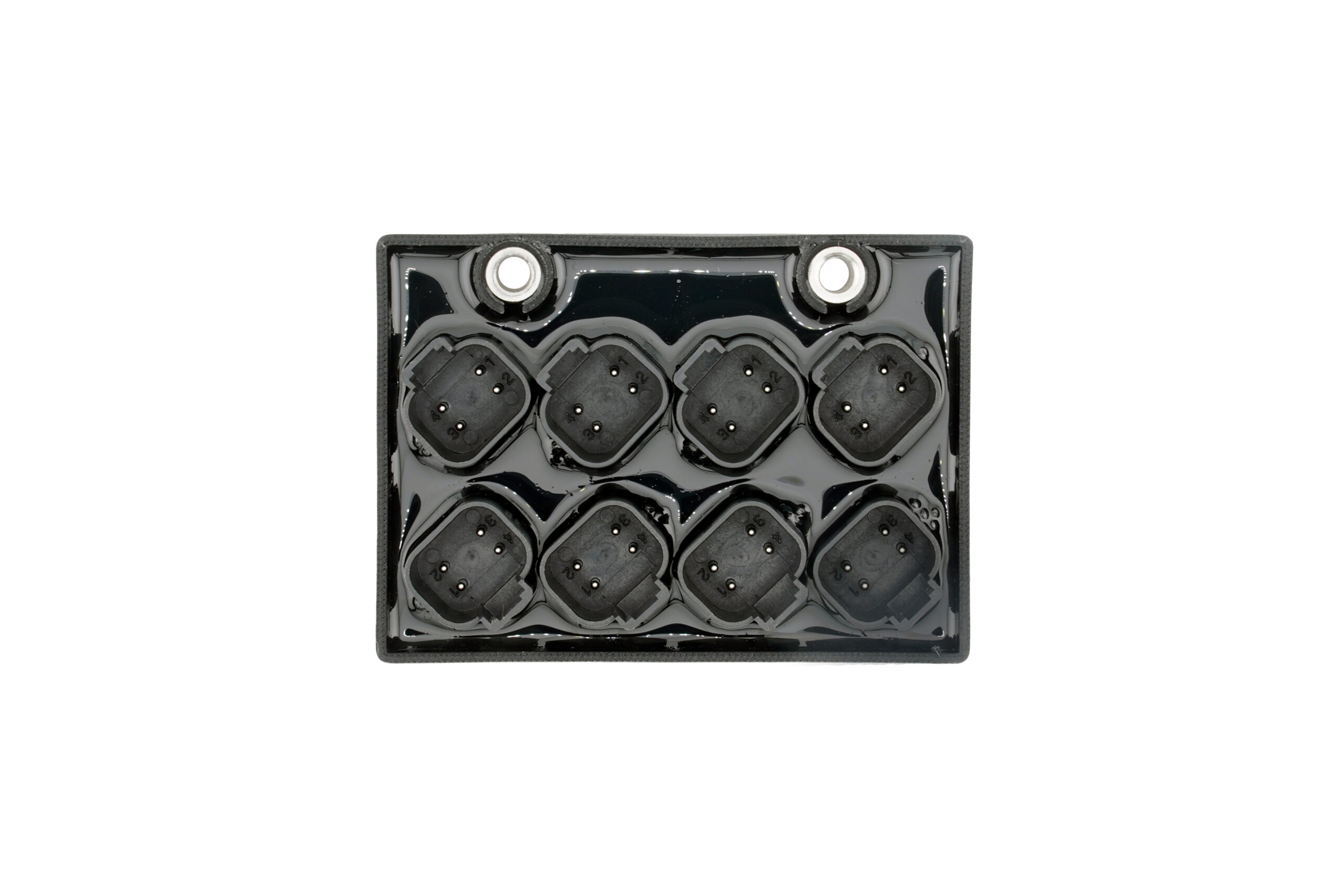

2×4 Variation
Best for more complex CAN layouts where additional routing flexibility is needed.

Notes

The Total Racing Products Ultimate CAN Hub is designed for use with popular aftermarket and OEM CAN networks, including MoTeC, Haltech, Syvecs, MaxxECU, ECUMaster, FuelTech, and stock ECU based applications.

Always confirm your device pinout, CAN wiring, termination requirements, and power requirements before installation.
