Total Racing Products Aluminum DIY Intercooler End Tank Set for Garrett 1000HP Air To Water Cores – R8/Huracan

Key Features

• Complete weld ready end tank set designed for Garrett 1000HP A2W cores, Garrett P/N 734408-6005
• Includes inlet tank with a pre cut 2.5 inch opening, outlet tank with a pre cut 3.5 inch opening, and dual water side tanks with pre cut holes sized for -12 AN ORB female weld bungs
• Each set includes four -12 AN ORB female weld bungs
• Water tank ports are offset to promote full core fill and proper drain back for maximum cooling efficiency
• CNC cut from .187 inch aluminum for strength, weldability, and consistent fitment
• Designed to package inside Gen 2 Audi R8 and Lamborghini Huracan turbo kit layouts
• Expected to work with other similar sized A2W cores, though not guaranteed
• Intercooler cores are not included
• Ideal for fabricators building their own intercooler assemblies

Product Description

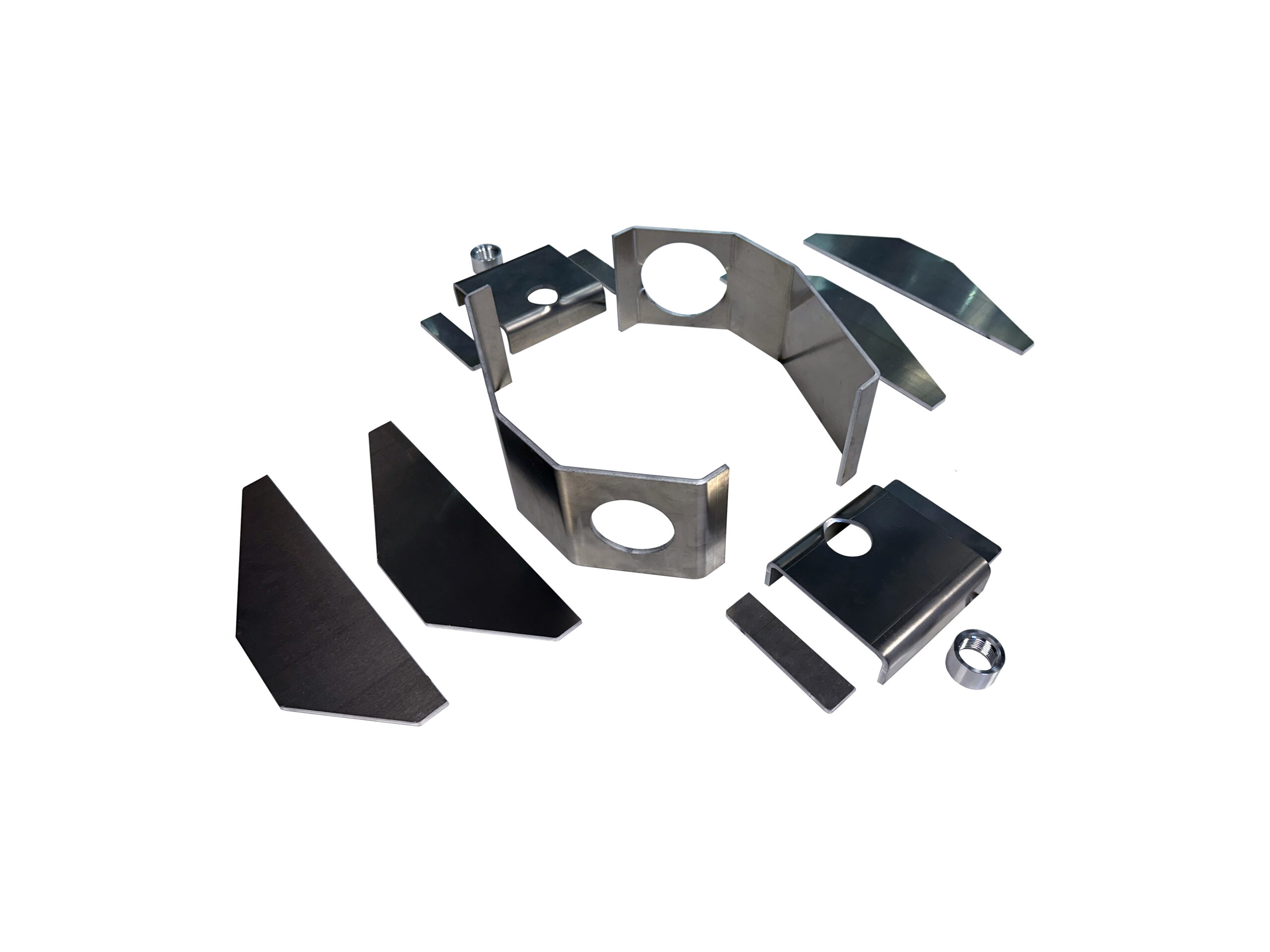

The Total Racing Products Aluminum DIY Intercooler End Tank Set gives builders everything they need to fabricate custom air to water intercoolers using Garrett’s 1000HP cores, Garrett P/N 734408-6005, inside Gen 2 Audi R8 or Lamborghini Huracan engine bays. Each set includes all four CNC cut end tanks required to complete one intercooler: an air inlet tank with a 2.5 inch opening, an air outlet tank with a 3.5 inch opening, two water side tanks with precision cut openings sized for -12 AN ORB fittings, and four -12 AN ORB female weld bungs. Intercooler cores are not included.

The water tank ports are strategically offset so coolant can enter one side of the core, fully saturate the water passages, and exit from the opposite side for the most efficient heat transfer. Built from .187 inch thick aluminum, these tanks weld cleanly and deliver the strength and rigidity required for high boost and high temperature environments.

This kit is designed around Garrett’s 11.9 inch by 4.8 inch by 4.8 inch 1000HP air to water cores. While tested only with this specific part number, the tank set will likely work with other similarly sized air to water cores from different manufacturers depending on exact dimensions and tube layout.

For fabricators building custom R8 and Huracan turbo systems, this tank set eliminates hours of layout, cutting, and guesswork. Pairing these tanks with our Total Racing Products Aluminum DIY Intercooler Brackets is also a great addition for a clean, factory style mounting solution. Weld it up, bolt it in, and go make boost.
