Pierburg Pal
Control a Pierburg CWA400 Water Pump utilizing a PWM signal or a pressure sensor.
SUMMARY
- Control pump speed of new LIN Bus Pierburg CWA400 pumps
- Two available modes of speed control
- Select PWM Speed Control Mode or Pressure Sensor Speed Control Mode at checkout
- Utilize a High Side PWM signal to control speed
- Connect a 3.5 Bar MAP sensor to ramp speed
- New smaller form factor
- Upgraded, beefier electronics
- Premium ENIG, Electroless Nickel Immersion Gold, surface finish
- Motorsport grade Deutsch 8 pin connector
- Sealed with epoxy and silicone for weather resistance in a carbon fiber-infused enclosure
As of approximately March 2024, all newly produced Pierburg CWA400 water pumps ship with different electronics, removing the ability to control pump speed via PWM. This change greatly impacts the performance automotive community as these pumps are heavily favored as the pump of choice due to their excellent flow, OEM reliability, packaging, and speed control. Unfortunately, the only way to control the speed of the pumps now is via LIN Bus, a common communication protocol used by auto manufacturers like BMW.

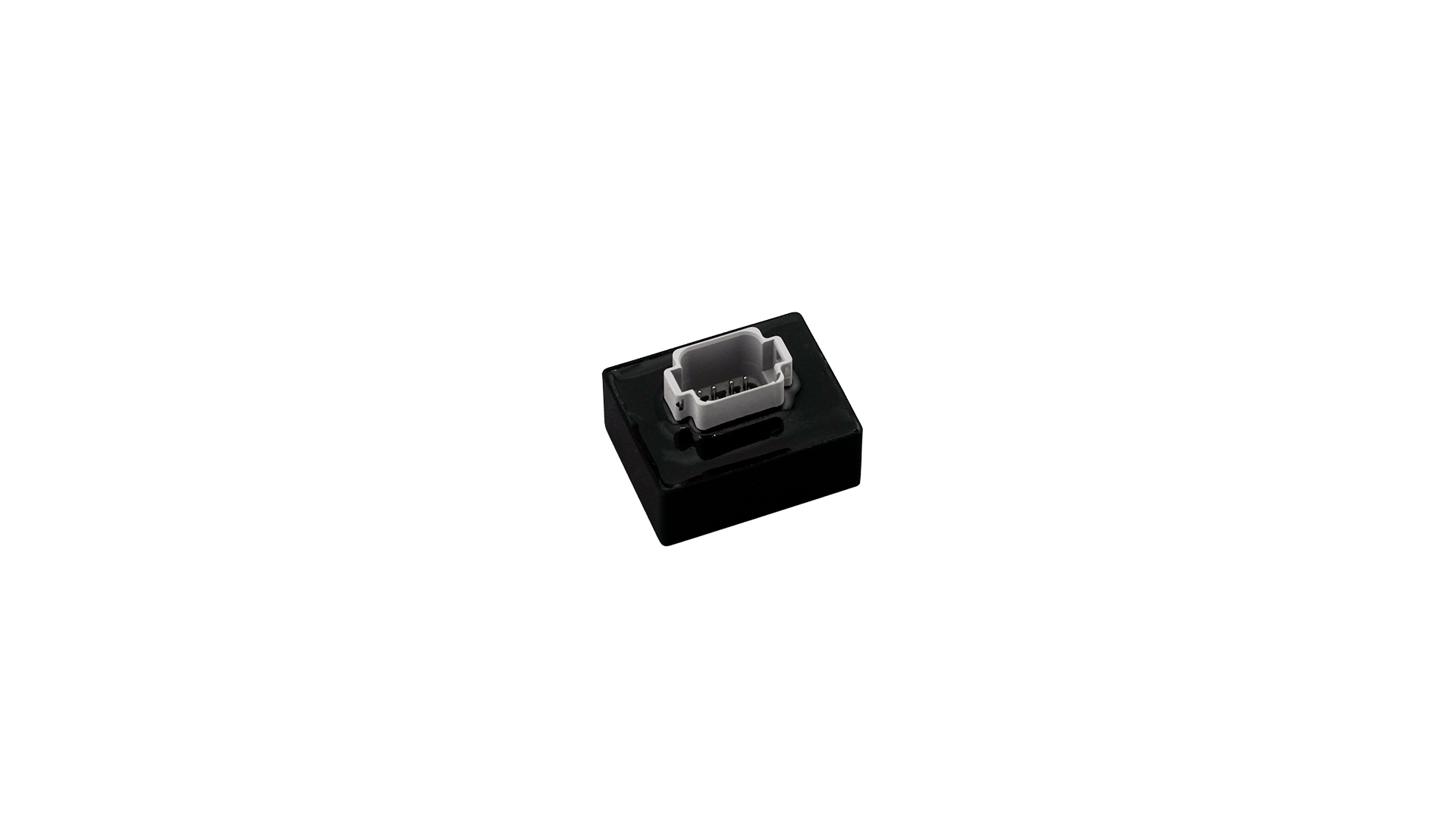

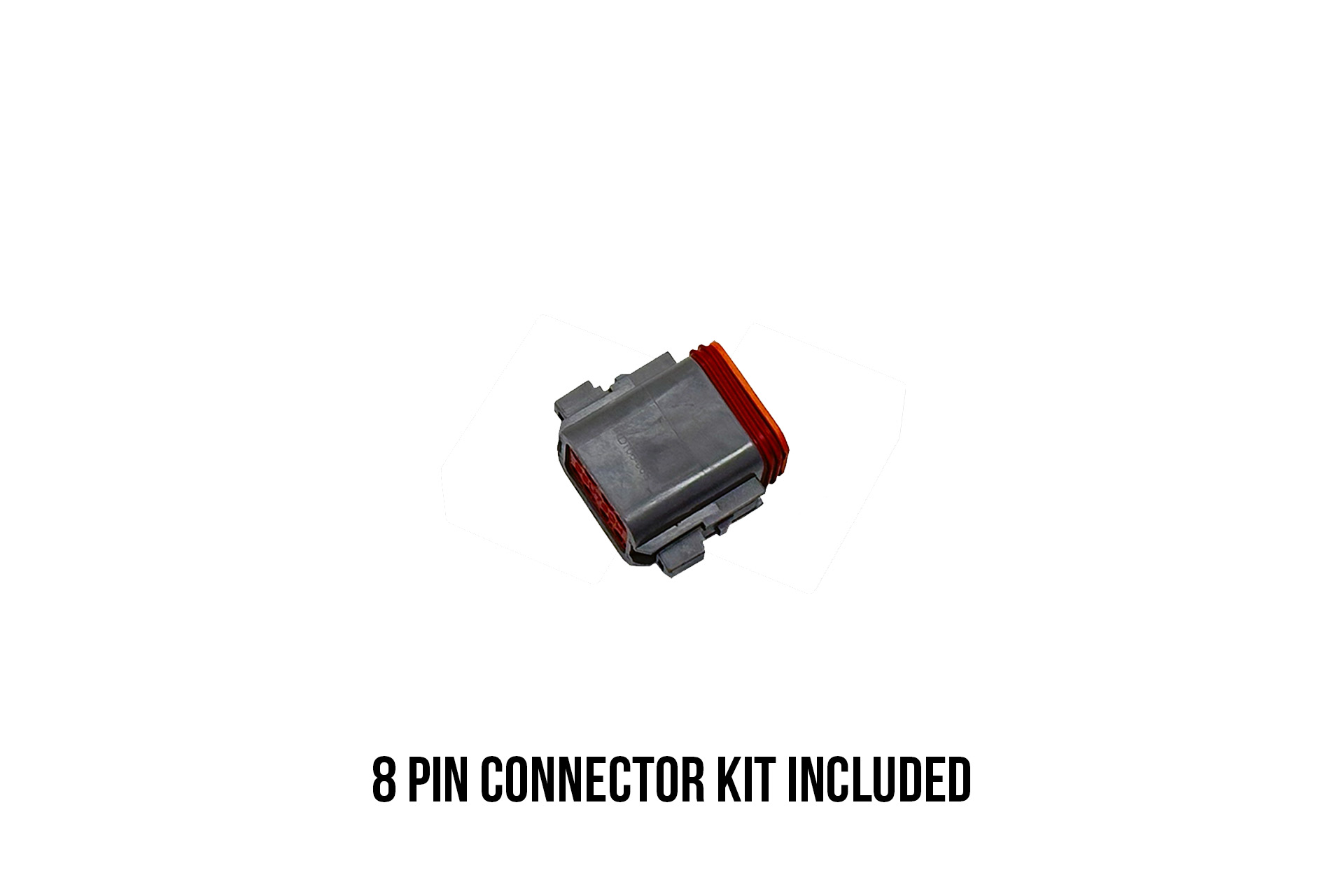

Total Racing Products figured out a solution and we call it Pierburg Pal. Pierburg Pal, or PP for short, is a multi-functioning LIN Bus controller to immediately address this lack of speed control issue. PP is terminated with a motorsport-grade Deutsch 8-pin connector and is programmed before shipment for the control method selected at checkout.

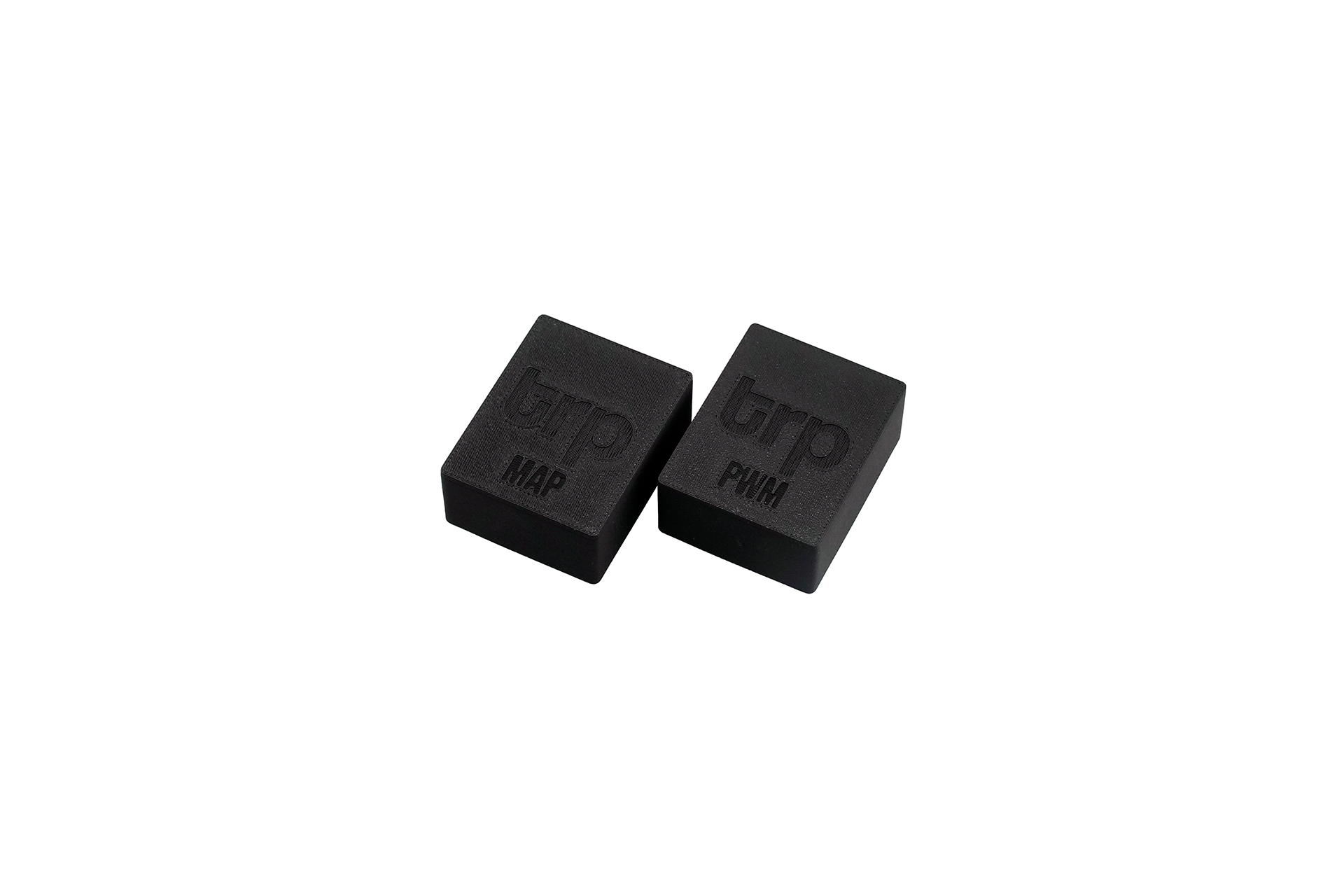

Unlike the original revision that utilized an onboard switch to select between control modes, the new revision of the Pierburg Pal is configured by Total Racing Products before shipment. At checkout, customers must select either PWM Speed Control Mode or Pressure Sensor Speed Control Mode. Please select the version that matches your intended control strategy.
The latest revision of the Pierburg Pal features a smaller form factor, upgraded beefier electronics, and a premium ENIG, Electroless Nickel Immersion Gold, surface finish for improved internal construction quality.
PWM Speed Control Mode: In this mode, you can control your pump with similar logic the previous revision CWA400s accepted, utilizing a high side PWM output from your favorite ECU, such as a Motec. The PP is looking for a 100Hz signal while speed is controlled by duty cycle from 0 to 100%. Speed control is linear. The PP interprets the PWM signal and outputs the commands to the water pump over LIN Bus.
Pressure Sensor Speed Control Mode: Many owners/tuners have no way to send a PWM signal for speed control because their stock ECU or standalone ECU doesn’t support this feature. With a 3.5 Bar absolute pressure sensor connected, such as a MAP sensor from TRP or AEM, speed is ramped based on Manifold Absolute Pressure (MAP). In vacuum, the pump begins to ramp faster as values start to increase. By the time positive boost pressure is achieved, the pump will be ramped to full speed. PP has pins onboard its 8 pin connector to provide 5V power, ground, and receive the signal from the MAP sensor being utilized.
TECHNICAL INFORMATION

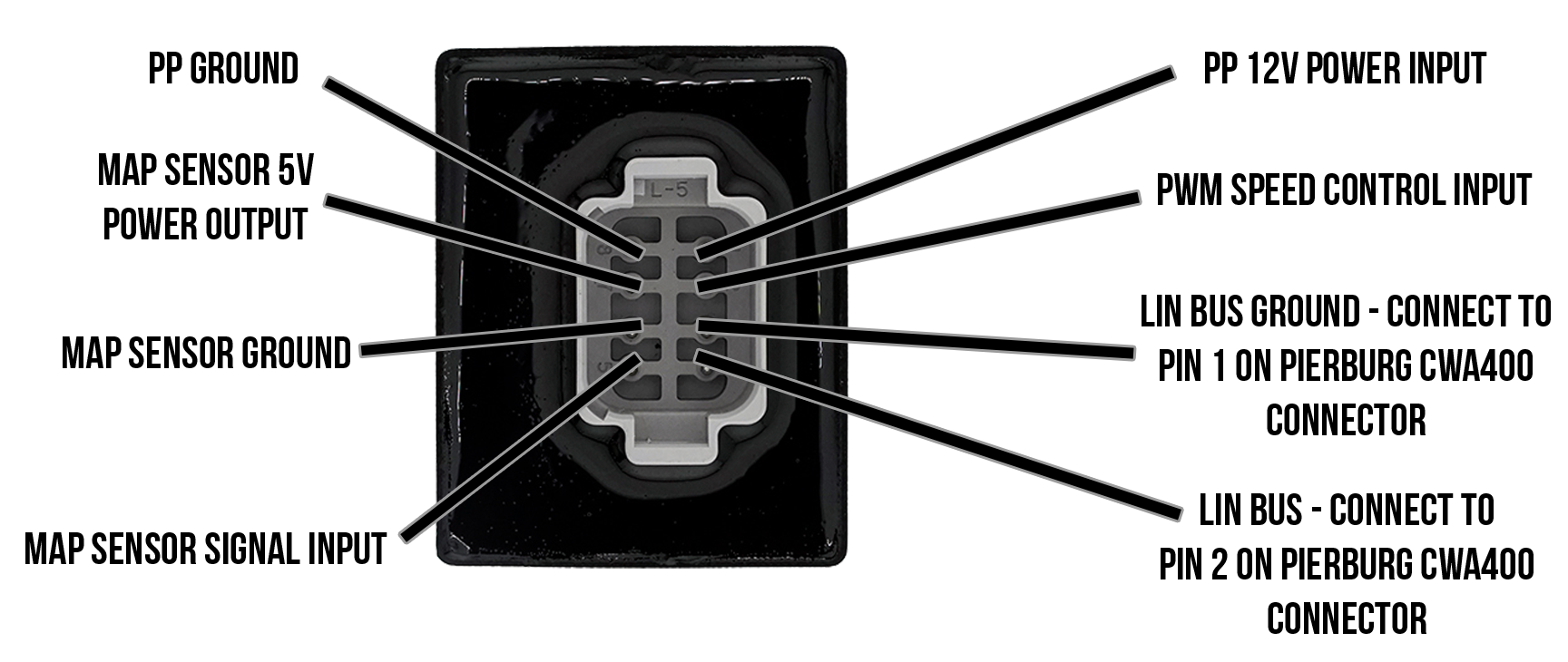

Connector Pinout
