Total Racing Products Brushless Buddy – Control a Ti Automotive Brushless Fuel Pump With Any ECU!
$184.99 – $399.97
-
TOTAL RACING PRODUCTS
Brushless Buddy
TECHNICAL INFORMATION
Connector Pinout

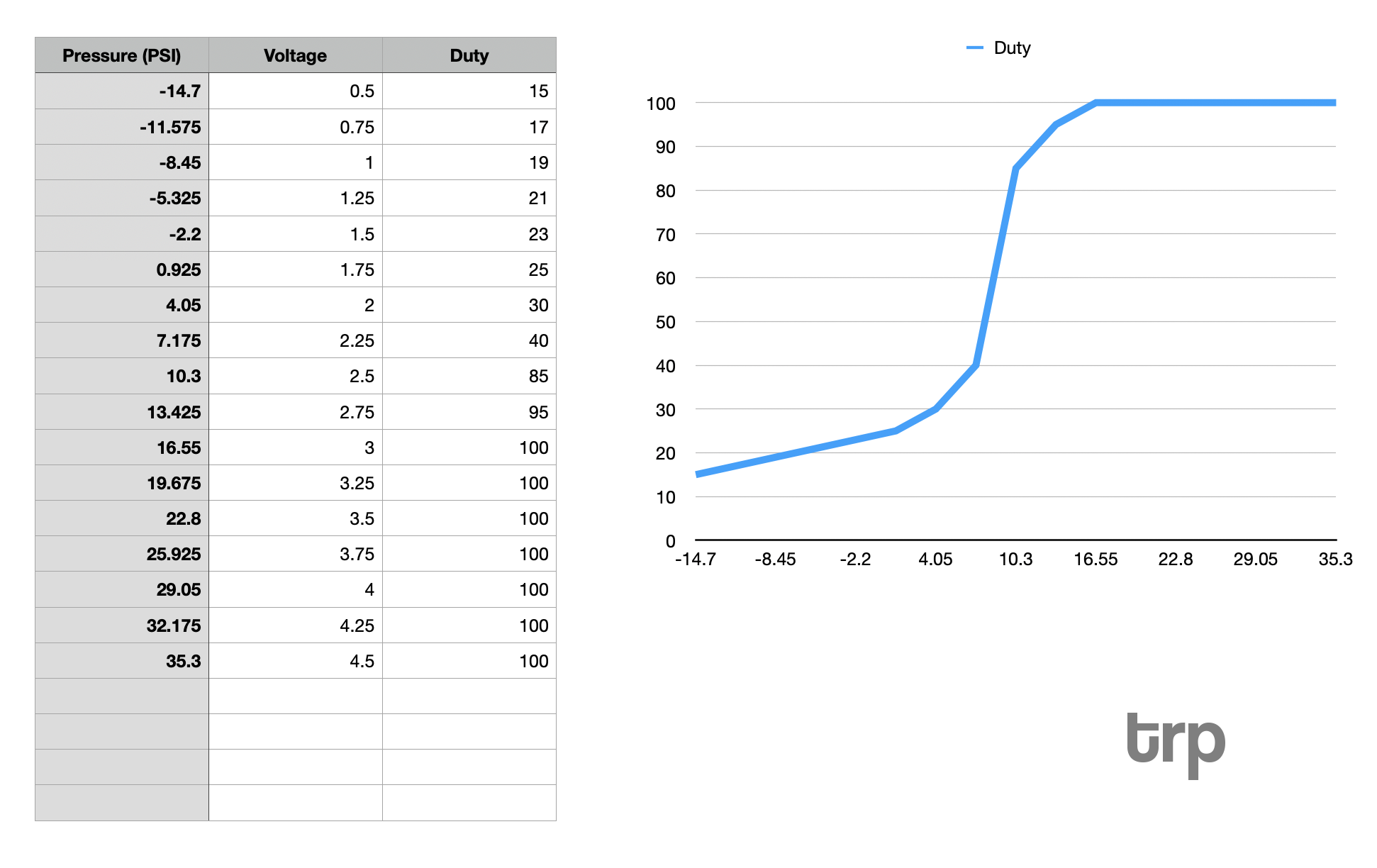

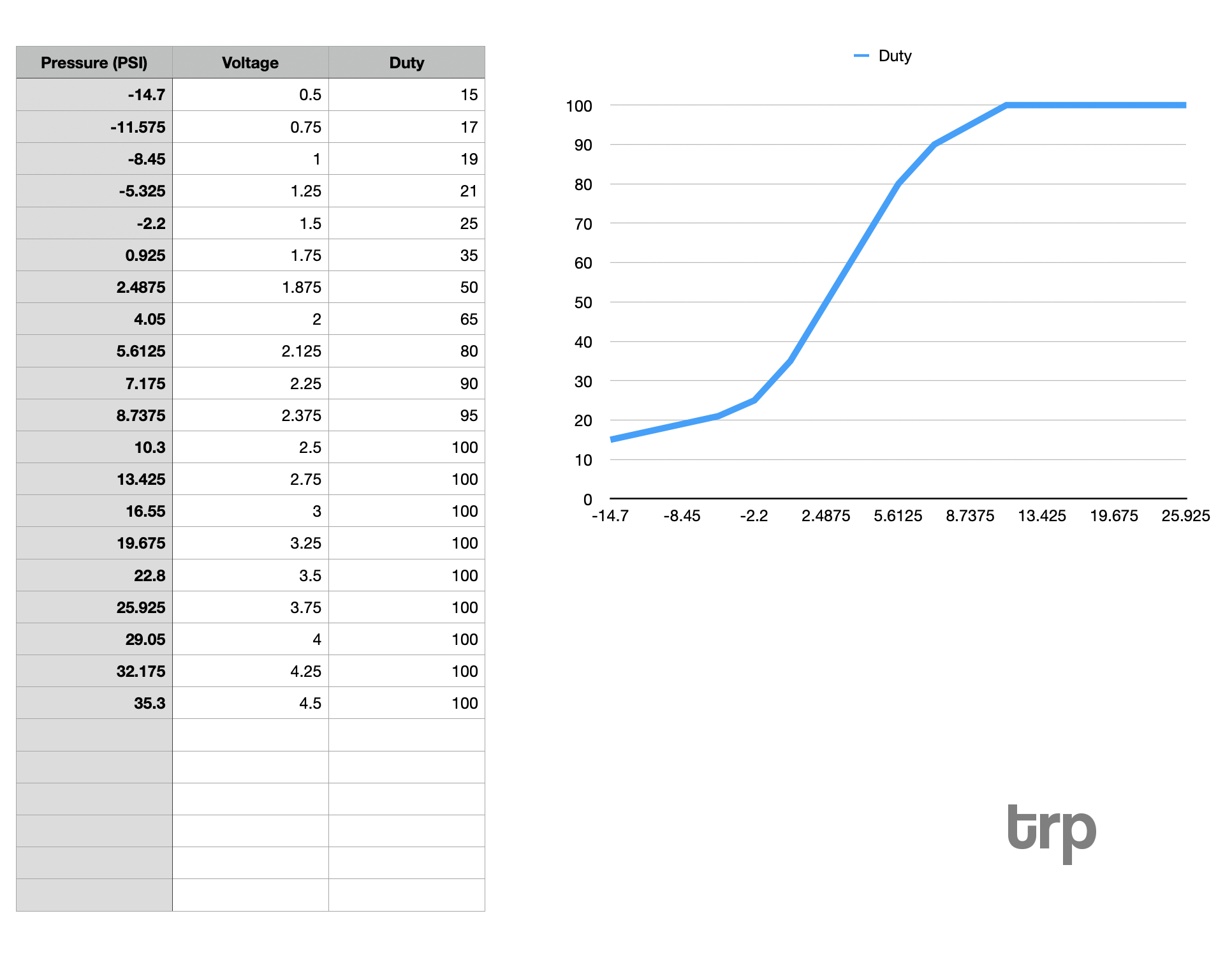

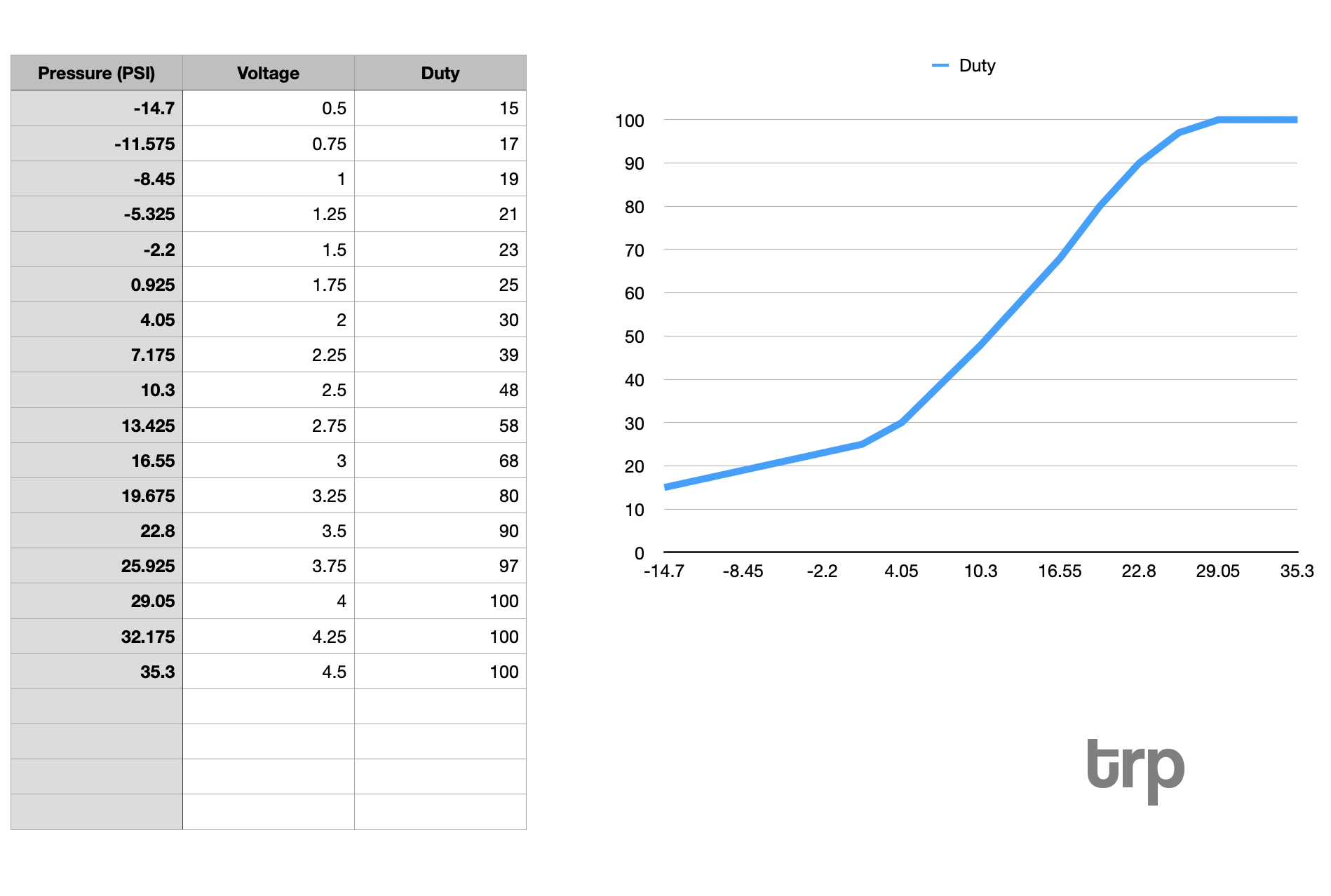

CONFIGURABLE SCALES
What's best for your build?
MORE INFORMATION
Frequently Asked Questions
What comes with each Brushless Buddy?
Included with every Brushless Buddy is a DT-6 style connector, a connector lock, and pins so that you can wire it specific to your application.
What if I don't know how to wire a connector?
TRP sells a universal harness that you can plug into your Brushless Buddy so that all you need to do is splice into power, ground, and your brushless pump controller's signal wire. You can purchase this harness here: https://totalracingproducts.com/product/total-racing-products-brushless-buddy-universal-harness/
Can Brushless Buddy drive more than one pump?
Yes! Just split the "PWM Signal To Controller" wire and connect each lead to the applicable wire on each brushless controller.
How fast does Brushless Buddy react to changes in pressure?
Brushless Buddy recalculates the current pressure conditions of your vehicle approximately 16,000,000 times per second, faster than the 100 times per second that the brushless fuel pump controller refreshes data.
